What is a Full Hydraulic Core Drill Rig?

A full hydraulic core drill rig is a geological exploration equipment that utilizes a fully hydraulic drive system to power the rotation and feeding movements of the drilling tools. The hydraulic pump converts mechanical energy into hydraulic energy, which is then transformed back into mechanical energy by hydraulic motors and cylinders to drive efficient drilling operations.

Compared to traditional mechanical drill rigs, full hydraulic core drill rigs offer significant advantages including flexible operation, precise control, and higher efficiency, making them the core equipment in modern geological exploration.

Core Applications of Full Hydraulic Core Drill Rigs

Full hydraulic core drill rigs are widely used in the following scenarios:

• Mineral Resource Exploration: Determining ore body location, scale, grade, and occurrence state; suitable for gold, iron, copper, and other mineral exploration

• Geological Research: Studying regional geological structures, stratigraphic evolution, magmatic activities, etc.

• Engineering Geological Investigation: Providing detailed geological data for large infrastructure projects such as bridges, tunnels, and high-rise buildings

• Hydrogeological Exploration: Understanding groundwater resource distribution and hydrogeological conditions

• Geological Disaster Investigation: Obtaining geological information from landslide, debris flow, and other disaster areas

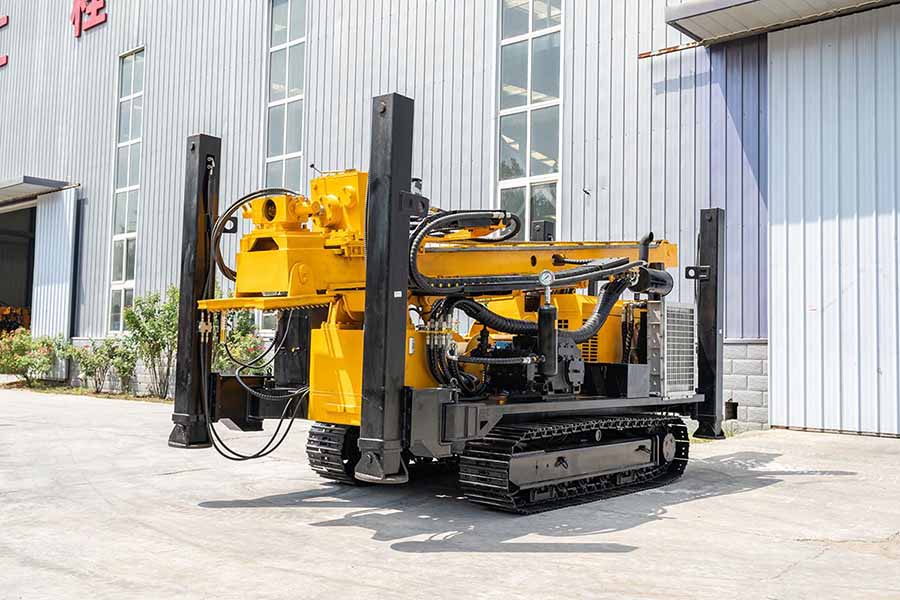

• Full Hydraulic Core Drill Rig

• https://www.hwmachinery.cc/drilling-pile/geological-exploration-drill-rig/

Technical Advantages of Chinese Full Hydraulic Core Drill Rigs

1. Comprehensive Depth Coverage

Chinese-made full hydraulic core drill rigs cover a wide range of drilling depths, with mature products available from shallow exploration to deep drilling.

2. High Core Quality

The fully hydraulic drive ensures smooth drilling operations, achieving core recovery rates of over 90%, guaranteeing sample integrity and representativeness. Some high-end models can achieve core integrity rates of over 95%.

3. Wireline Coring Technology

Wireline coring technology is a highlight of Chinese full hydraulic drill rigs. When the core barrel is full, there is no need to lift the entire drill string; the core can be retrieved by lowering a wireline overshot into the hole, significantly improving operational efficiency.

4. Intelligent Control Systems

Modern full hydraulic core drill rigs are equipped with advanced PLC control systems that monitor and adjust drilling parameters in real-time, integrating torque sensors, displacement encoders, and core jamming detection devices to ensure operational safety and core quality.

5. Strong Mobility

Some models feature crawler-mounted chassis for self-propelled travel and zero-radius turning, requiring no auxiliary transport equipment. Single-shift travel distance can exceed 400 meters, adapting to complex terrain conditions.

How to Choose the Right Full Hydraulic Core Drill Rig

When selecting a full hydraulic core drill rig, consider the following factors:

1. Exploration Depth Requirements: Choose the appropriate model based on project target depth; Chinese products currently cover 100-2000m range

2. Geological Conditions: Different geological conditions require different torque and thrust force specifications

3. Core Quality Requirements: Pay attention to core recovery rate and integrity parameters

4. Transportation Conditions: Consider whether the equipment is easy to transport and install on-site

5. After-Sales Service: Choose Chinese manufacturers with overseas service experience

Global Competitiveness of Chinese Full Hydraulic Core Drill Rigs

Chinese full hydraulic core drill rig manufacturers have accumulated profound experience in industry knowledge and key technologies over more than 20 years of development. Products have been exported to over 60 countries and regions worldwide, establishing a strong reputation in the international market through reliable quality, reasonable pricing, and comprehensive after-sales service
