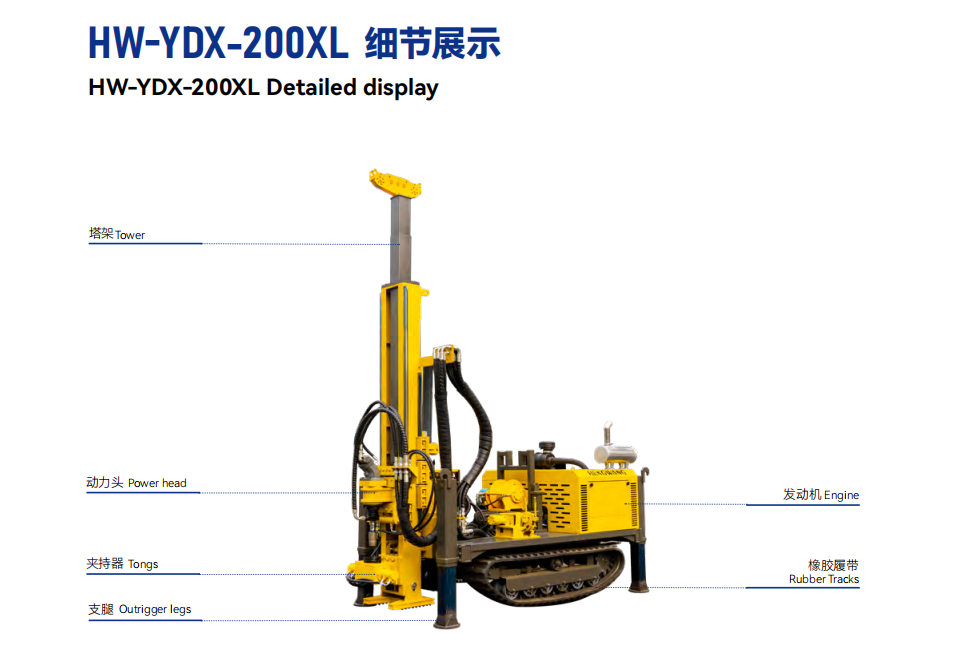

HW-200XL Fully Hydraulic Rope Coring Drilling Rig
Rated speed:2400(rpm)
Maximum torque:200-400(N·M)
Product Details
It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.
2. Easy to install, no need to lift the drill pipe during the rope coring process.
3. Thin-walled drilling tools with high coring efficiency.
Parameter:
| model | HW-YDX-200XL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 100-200-300(M) |

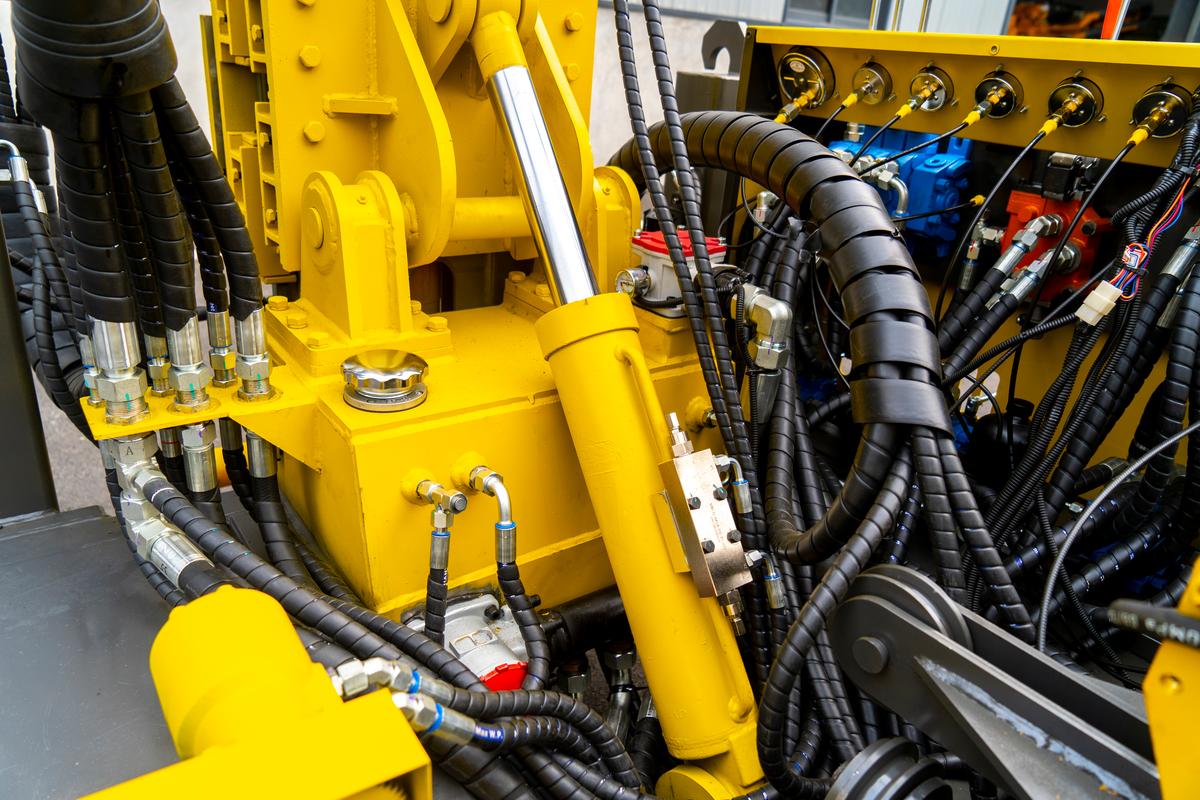

| Hydraulic system | |
| preset pressure | 21(MPA) |
| Rated flow | 78(L/min) |
| Cooling type | Water cooling |

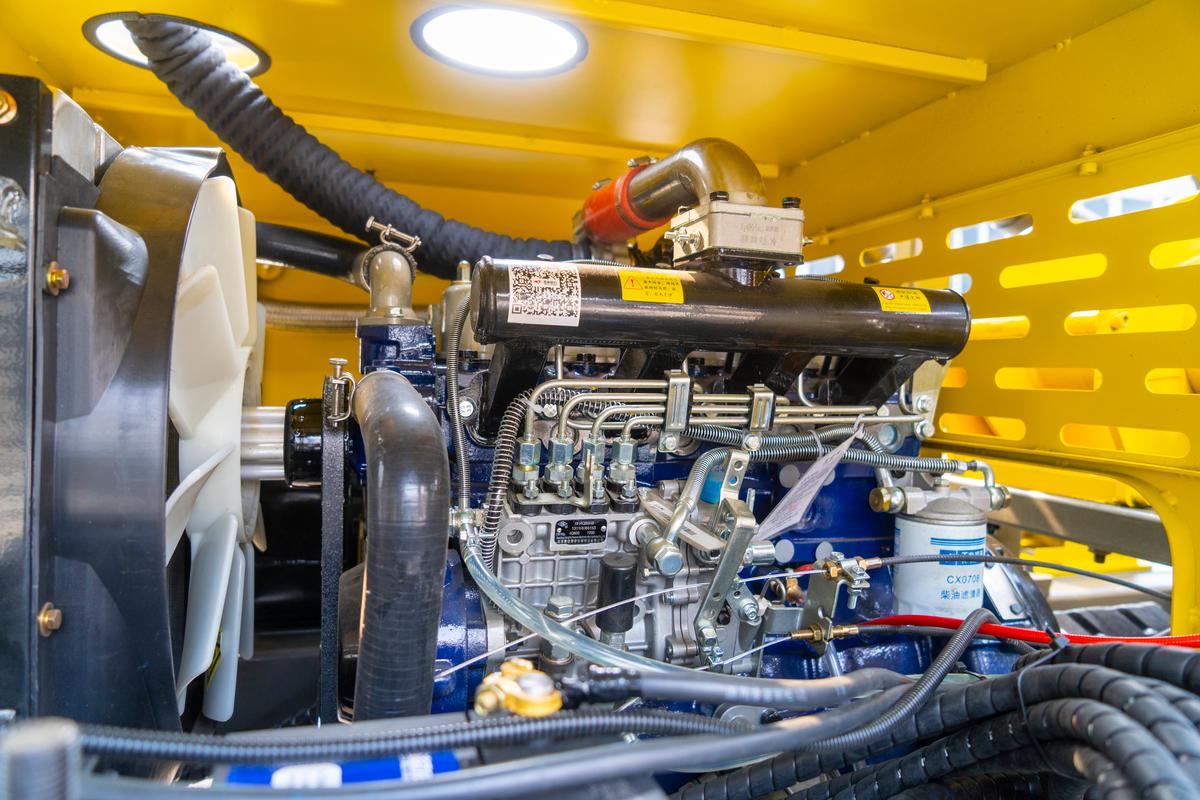

| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 58KW |
| Power head | |
| Maximum torque | 200-400(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 1900(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 10(T) |
| Feeding force | 5(T) |
| Winch | |
| Lifting force | 500(KG) |
| Rotary speed | 100-240(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 200(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 2.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |
| mud pump | Contains Bw-90 mud pump |
| flow | 30-90(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 3000*1500*1800(MM) |
| Total Weight | 3.6(T) |
The full hydraulic rock core drilling rig is a widely used equipment that offers significant advantages in various applications. 1. Versatile Application: It is suitable for prospecting and drilling in a range of minerals such as gold ore, iron ore, coal, lithium ore, rubidium ore, and stone ore. 2. Easy Installation: The rig is easy to install, and during rope coring, there is no need to lift the drill pipe. The winch is connected to the salvage device, ensuring high coring efficiency. 3. Enhanced Efficiency: Unlike traditional vertical shaft control machines that require drilling and lifting of the drill pipe, the hydraulic rock core drilling rig offers higher efficiency. It eliminates the need for troublesome disassembly and assembly of the tower, and large equipment lifting and transportation, thereby reducing costs. 4. Thin-Wall Drilling Tools: The drilling rig utilizes thin-wall drilling tools, with a core diameter of 56 and a thin drill bit wall. This enables precise and efficient drilling operations. 5. Comparison to Traditional Drilling Rigs: In comparison to traditional drilling rigs, the full hydraulic rock core drilling rig offers a larger core diameter of 48 and thinner drill bit walls. This provides improved drilling performance and better results
Due to product upgrading, some parameters may be changed, and the latest parameters can be obtained by submitting the form.
