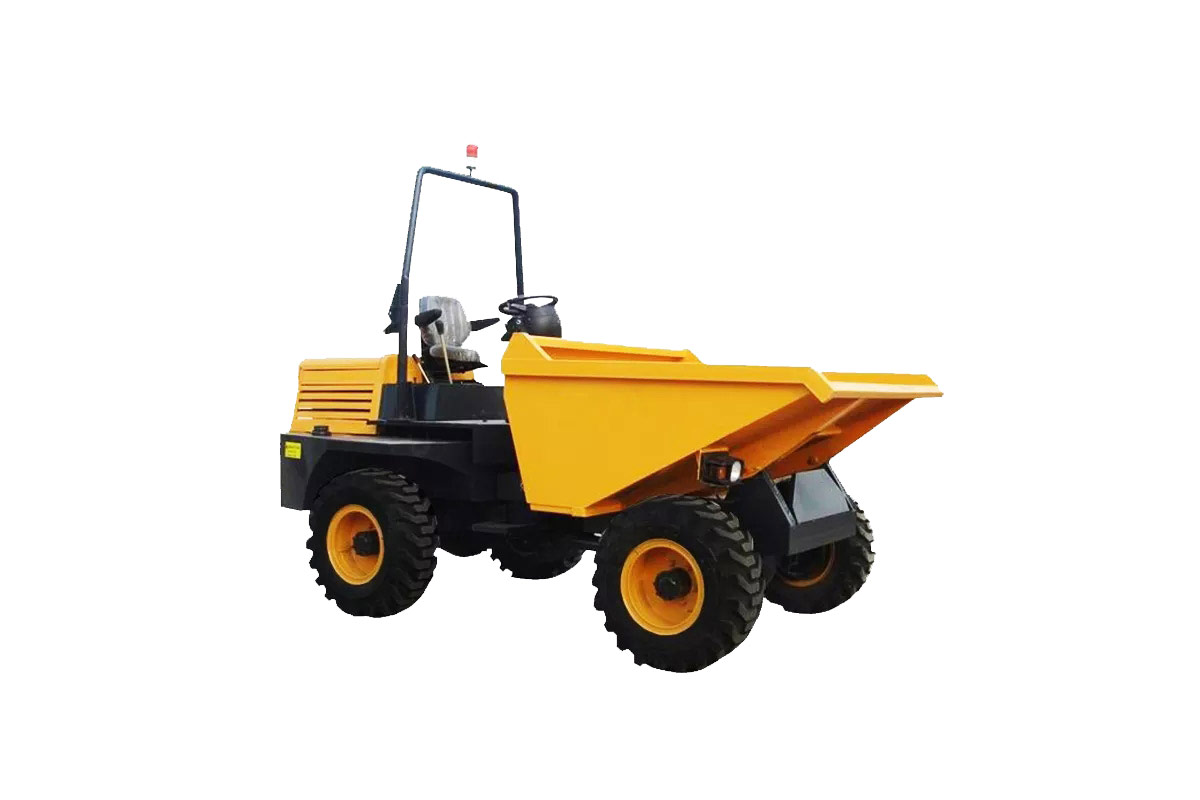

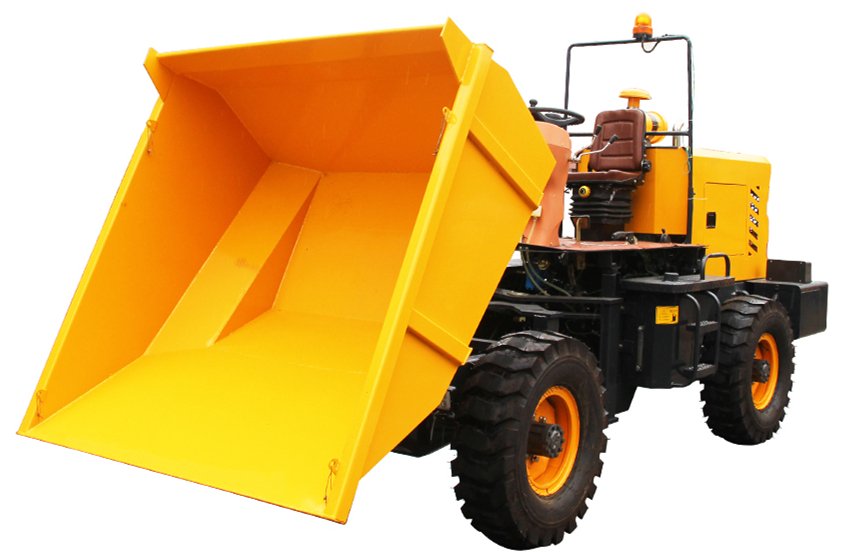

HW-FCY20 Site Dumper
Bucket Capacity: 1.5CBM
Rated Power: 38Kw
Product Details
The wheel site dumper is wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.
Features:
1. 4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
2. Low walking speed, short-distance transport of bulk materials.
3. Easy operation, small turning radius can be used in a narrow site.
4. With self lading bucket can realize the multifunction tools.
Parameter
Model | HW-FCY20 |
rated loading capacity | 2000kg |
Rated bucket capacity | 1.23m³ |
Weight | 2250kg |
Engine model | CG25 |
Power | 17.2kw |
Tire | 750—16/825—16 |
minimum turning radius | 4500mm |
Transmission form | mechanical |
Size | 4500*1700*2600mm |
